Applications
For growing culture of micro organisms and tissue cells. The orbital motion provides good transfer of oxygen to the culture and avoids undue buffeting of organisms and cells.
Features
• Choice of various models for your specific needs
• Smooth, stable, low noise shaking workings at 25 / 38 / 70 mm circular orbit.
• Triple eccentric drive with excellent dynamic balance for long life operation for model 720 / 721 / 722.
• Built for continuous operation.
• Stepless adjustable speed control.
• Electronic speed control from 10 – 400 rpm.
• Carbon brush – less induction motor, maintenance free performance.
• Electronic control slow start, avoids culture spillage when shaker start up after power failure.
• Digital microprocessor controller with opto-electronic feedback (for digital model only).
• Manufactured by a factory certified to ISO 9001 : 2015
• Type Tested To MS IEC 61010-1 : 2006 Standard Electrical Safety Test
| Model | 722 |
|---|---|
| Shaking speed | 10-400 rpm stepless variable |
| Speed control | Electronic control slow start |
| Speed indicator | Electrical tachometer |
| Orbital motion | Option of 25 / 38 /70 mm stroke |
| Drive | Special counterbalancing system |

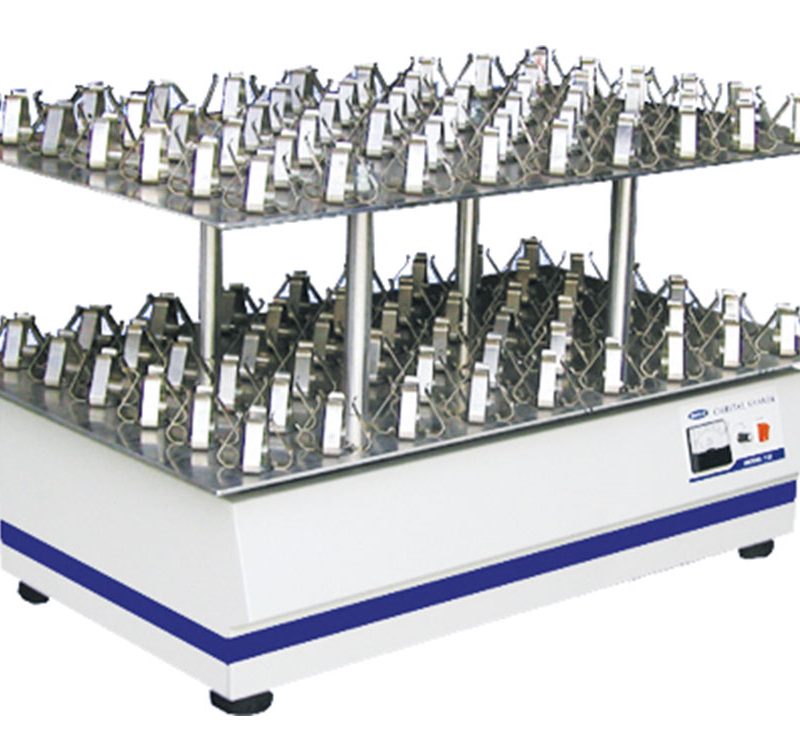

| Platform dimension (mm) | 1050W x 605D x 645H (2T 250 ml) aluminium alloy |
| Overall dimension (mm) | 965W x 550D x 355H (250ml) |
| Power source | 240V 50Hz, 0.3A |
| Weight | 78 kg |
