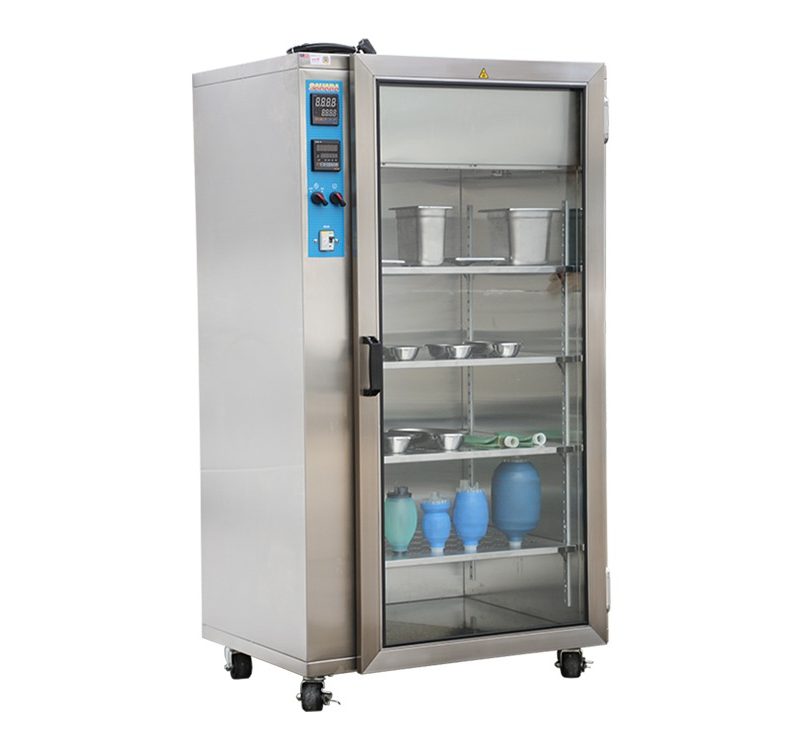

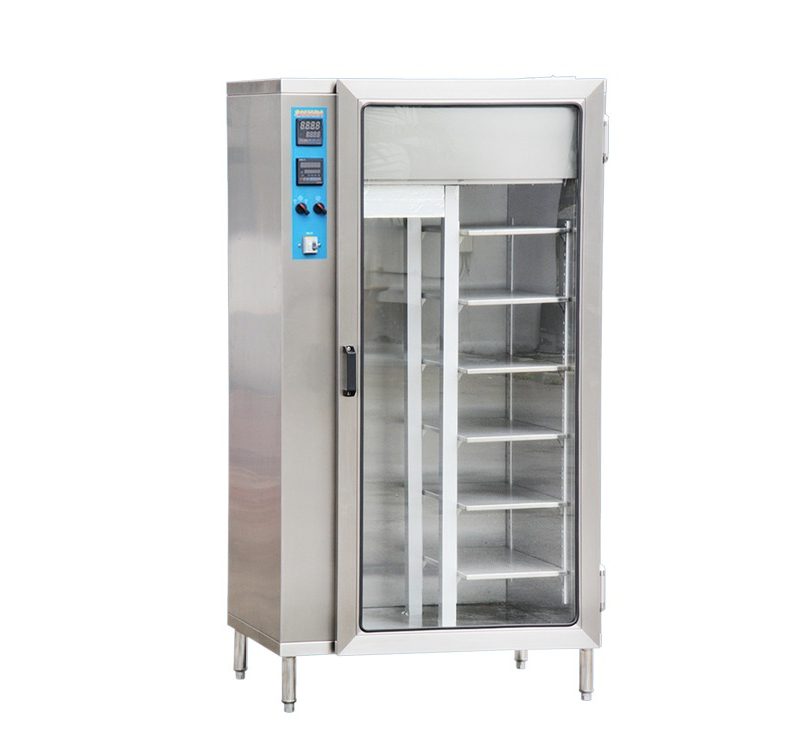

Stainless Steel Medical Drying Cabinets Model MDC-440RSS(PT)
• Medical Drying Cabinets are designed to dry breathing bags, connector parts, scopes, instruments, metal utensils and other ancillary equipment.
• The multi-purpose model (MDC-440RSS) has tube-holders to dry anaesthetic tubings and respiratory tubings.
• Fan assisted forced air convection system efficient drying and even temperature distribution.
• Polyurethane insulated chamber walls reduce energy wastage.
• Digital PID temperature controller ensures temperature accuracy and operation.
• Adjustable vent facilitates moist air discharge and speed up the drying process.
• Stainless steel interior and exterior for hygiene and easy maintenance.
• Full length adjustable stainless steel shelves to accommodate loads of various sizes.
• Slide-out tube-holder for easy mounting of respiratory tubes. (Model MDC-440RSS only).
• Built-in timer function saves energy and enables automatic operation.
• Built-in high temperature safety thermostat and ELCB ensures safety of products and operator.
• High quality workmanship and smart design for easy maintenance and aesthetic appeal.
• Manufactured by an ISO 9001 : 2015 and EN ISO 13485 : 2016 certified company
• CE Marked
• Pass through version with doors on front and back.
| MODEL | MDC-440RSS(PT) |
|---|---|
| Type | Floor-standing, dual-chamber |
| Applications | Multi-purpose. Drying of respiratory tubings and general medical items |
| Capacity | 400 litres |
| Cabinet Construction | Rust-proof stainless steel interior and exterior, insulated with polyurethane foam on the side and back panels. |
| Air circulation rate | 480 m3/hr for each chamber |
| Electrical loading | 1 kW x 2 |
| Working temperature range | From ambient up to 70°C |
| Temperature display | Digital, display up to 0.1°C |
| Safety devices | Built-in thermostat and ELCB. Fitted with temperature alarm to avoid overheating. |
| Timer | Built-in 999-minutes timer. |
| Door type | Glass door with magnetic gasket for easy viewing of drying stocks. |
| Tube-holder | 1 unit (capacity of 35 tubes) |
| No. of shelves supplied | 4 units |
| Shelf dimensions (mm) | 280 W x 560 D x 10 H |
| Interior dimensions (mm) | 620 W x 625 D x 1190 H |
| Exterior dimensions (mm) | 880 W x 705 D x 1635 H |
| Electrical supply | 220-240 VAC, 50 Hz, 8.7A |
| Weight | 117 kg |
