System Features

  • LCD Temperature Control Systems
    • Button-type control panel is easy to operate, the temperature and alarm settings can be adjust on the panel.
  • LBA Forming Technology
    • The world’s leading fourth generation foaming agent more uniform density, better insulation, more energy-saving.
    • More reasonable foaming layer design, larger interior storage space.
  • Micro-channel condenser
    • Powerful heat dissipation for condenser, heat exchange capacity increase by more than 20% than common copper tube fin condenser.
    • Excellent compressor overheating protection, effectively improve the service life of core parts.
  • Three-dimensional seal
    • The unique three-dimensional seal, through the double-layer door seal and the multi-layer airbag sealing design, can effectively reduce the leakage of cold air and achieve best thermal insulation performance.

ITEMMODELMC-40L518
Product structure dataTemperature Range-20°C ~ -40°C
Fridge Storage Volume (L)518L
External MaterialHigh quality coated steel
Internal MaterialHigh quality coated steel
Product Dimensions (mm) (W x D x H)866 x 811 x 1920
Interior Dimensions (mm) (W x D x H)(680 x 620 x 650)*2
Packing Dimensions (mm) (W x D x H)905 x 835 x 2040
Loading Dimensions (mm) (W x D x H)905 x 835 x 2040
Net/Gross Weight (kg)142/164
Loading capacity (40HQ)14/28
Thickness of Foaming Layer (mm)75
Foaming agentCyclopantane
PackingCarton
Stacking layers1
Technical dataCooling TypeDirect cooling
Defrost typeManual
Climate ClassN
Noise dB(A)58
Rated Voltage/Frequency(V/Hz)220 ~ 240V / 50Hz
Rated Power (W)450
Rated Current (A)3.8
Refrigerant/Amount (g)R290, 70g*2
ControlControllerMicroprocessor
DisplayLCD display
Product PerformanceTemperature Accuracy0.1°C
Temperature uniformity/°C3°C
AlarmsSound AlarmY
Light AlarmY
Power Failure AlarmY
Sensor Failure AlarmY
Environment Temperature AlarmY
Door ajar AlarmY
High Temperature AlarmY
Low Temperature AlarmY
Remote AlarmY
AccessoriesUSBY
Anti-condensation DoorY
LockY
Backup Battery24h
HandleGrip

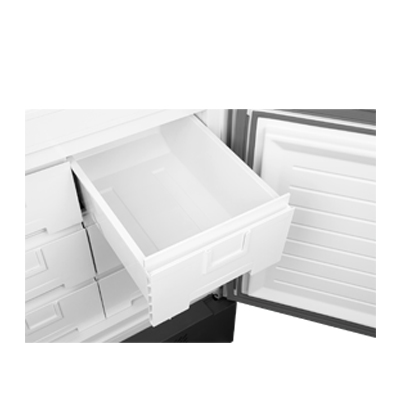

Shelves/Drawers Qty12 drawers
Cable PortY
Castors/typeY
